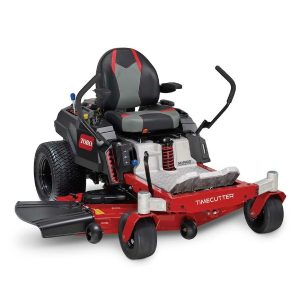

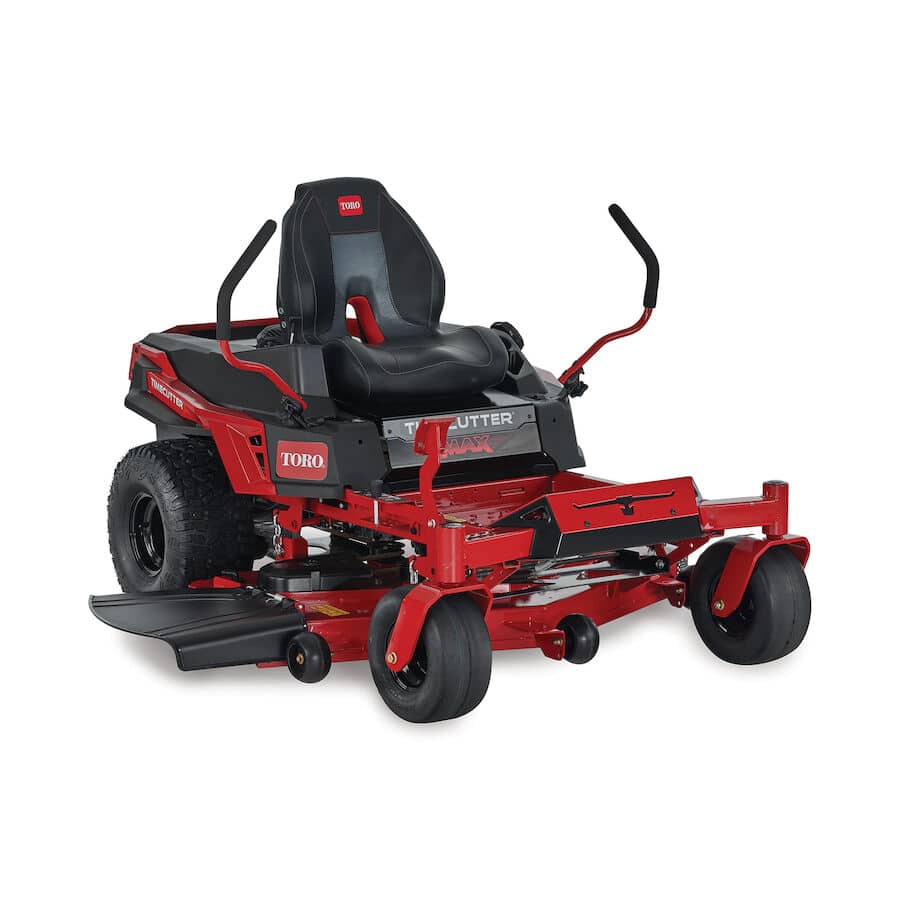

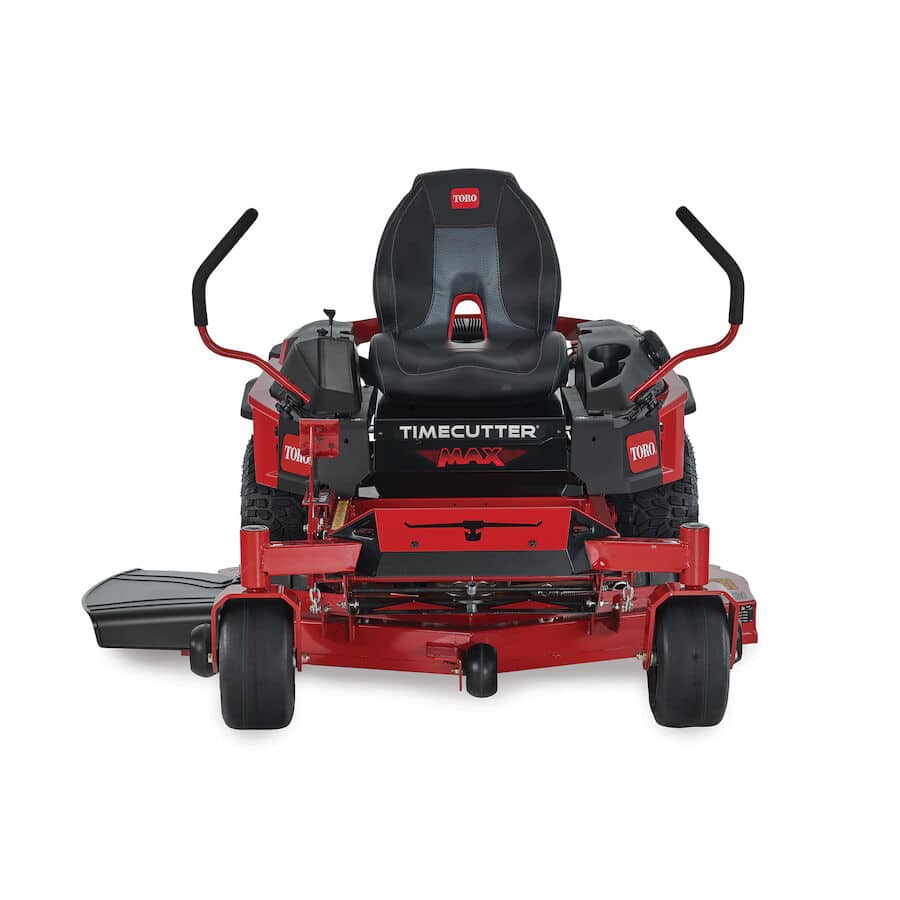

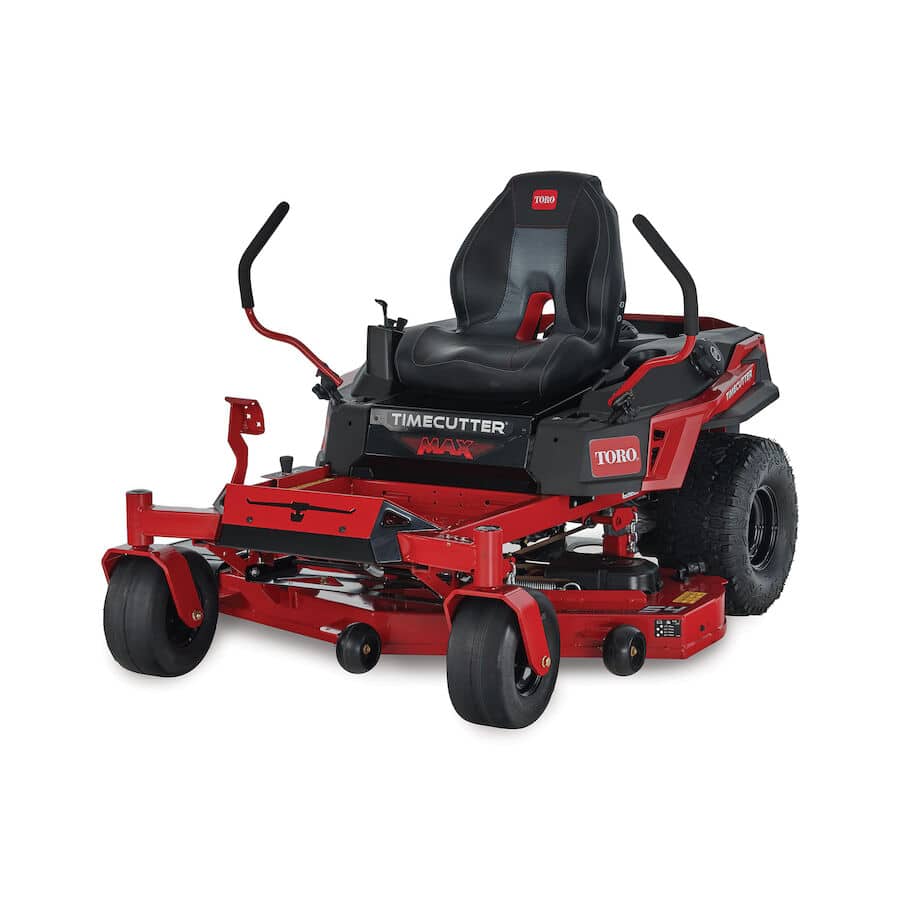

Toro 54 in. (137 cm) TimeCutter® Max Zero Turn Mower (77504)

Contact us for price

Stock status: Call Store for Availability

  • Over 100 years of Pro DNA course through the veins of every mower we build.
  • Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.
  • The gaming-style seat gives you big time support exactly where you need it.
  • The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
  • Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
  • Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
  • Spray blocking fenders keep tire spray off your engine, and more importantly, you.
  • Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more
  • The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
  • Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
  • The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
  • The extra-large, built-in drink holder keeps your beverage handy so you can keep powering through.
Call Us Now

Specs

Air Filter Standard Kawasaki Air Cleaner
Anti Scalp Wheels 3 Standard
Armrests Optional
Bagger Capacity 4.9 bushels
Blade Tip Speed 17,700 ft/min / 5,395 m/min
Box Dimensions 82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires 12 in. x 6 in. - 5 in. (30.5 x 12.2 cm - 12.7 cm) Pneumatic
Clutch Electromagnetic
Comfort Platform Standard Suspension
Cooling System Air Cooled
Crankshaft 1" (25 mm) w/Steel Protector
Cup Holder Standard
Cutter System Steel Cutting Blade
Deck Design 10-Gauge steel IrongForged®
Deck Material 10 Gauge Steel
Deck Size 54 in / 137 cm
Discharge Chute Side
Drive System HYDRO
Drive Tires 20 in. x 10 in. - 8 in (51 cm x 26 cm - 20.3 cm)
Drive Type Rear-Wheel Drive
Engine 23 hp Kawasaki FR691V 726cc
Engine Brand Kawasaki
Engine Displacement (cc) 726 cc
Engine Horsepower 23.0 hp
Engine Power (kW) 17.2 kW
Foot Operated Height of Cut Standard
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Forward Mowing Speed Up to 7.0 mph / 11.2 kph
Frame 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity 5 gal. / 18.9 L / 20 Qt.
Fuel Type Gasoline
Greasable Bearings Yes
Height of Cut 1.0 - 5.0 in. / 2.5 - 12.7 cm
Hitch Bracket Standard
Hour Meter Optional
Hydraulic Drive Standard
Lighting Optional
Number of Blades 3
Product Type TimeCutter Max
Product Use Residential
Recommended Oil Type 10W-30
Roll-Over Protection (ROPS) Optional
Seat 19" Gaming Style
Spindle Bearings Maintenance-free
Spindle Housing Cast-Aluminum
Start Type Electric
Steering Controls Twin Lever
Steering Dampeners Standard Dampers
Terrain Type Flat with Obstacles
Tires 12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (50.8 cm x 27.9 cm) Rear
Tow Capacity Combined machine, user, towed weight may not exceed 1,000 lbs.
Transmission Dual Hydrostatic HG-EZT2200
Washout Port Standard
Weight 653 lbs / 296.2 kg
