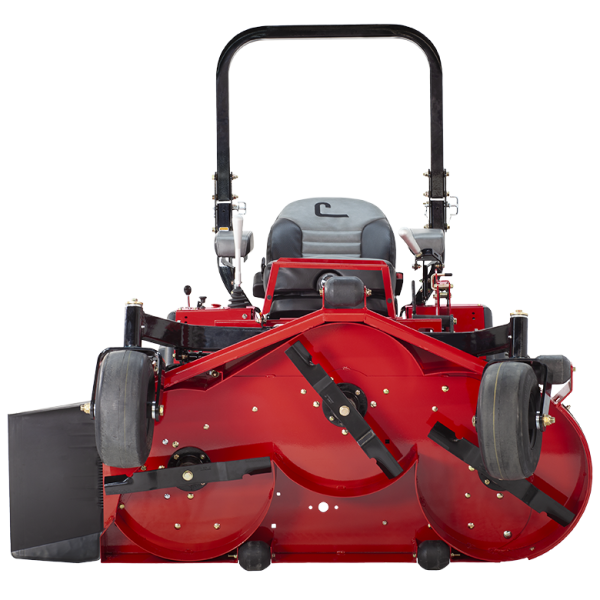

Boss XL

Contact us for price

Stock status: Call Store for Availability

Re-engineered from the wheels up, the Boss provides turf care professionals with enhanced performance and operator comfort.  The Boss features a virtually indestructible deck, roomy cockpit and fully articulating deck suspension.

Call Us Now

Specs

Feature Specifications
Engine 31 hp Kawasaki® FX921V,
35 hp Kawasaki® FX1000V
Horsepower 31, 35
Cylinders 2
Oil Capacity 2 qt (1.9 L)
Drive System Hydro-Gear® ZT-5400
Hydro Oil Cooler Standard
Fuel Capacity 10.25 Gallon
Steering Control Joystick, Twin Lever
Stand-up Deck Standard
Pivoting Front Axle Standard
Roll-Over Protection Standard
Tires, Rear 26x12-12
Tires, Front 15x6-6
Turning Radius Zero-Turn
Ground Speed (Forward/Reverse) 12.5 mph/7.5 mph
Length 85", 87"
Height : top of seat back N/A
Height : top of ROPS extended 76"
Height : top of ROPS folded 49"
Width, Tractor (outside rear tires) 59"
Width, Deck w/ Chute 73", 85"
Width, Deck Chute Up 61", 73"
Cutting Width 60", 72"
Cutting Height 1.5" - 5" (1/4" increments)
Deck Construction Laminated Welded 10 Gauge Steel Deck with 10 Gauge Reinforcement and additional 7 Gauge Spindle Mounting Reinforcement, protective bullnose front, high impact anti-scalp rollers and wear bar
Deck Engagement Electric, Ogura®
Blade Length 21", 25"
Spindle Assembly Cast iron housing; 1.5" diameter shaft; maintenance free & field serviceable
Blade Tip Speed, approx. 19,000 fpm
Weight 1330 lbs - 1434 lbs
Seat Suspension Seat with 3" Adjustable Travel, Vibration Isolators, Adjustable Seat Back Recline, Adjustable Lumbar Support and Adjustable Arm Rests
Other Standard Features Hour Meter, Electric Start, Cup Holder, Storage Tray, Front Step, Electric Fuel Gauge, Trailer Hitch Receiver
